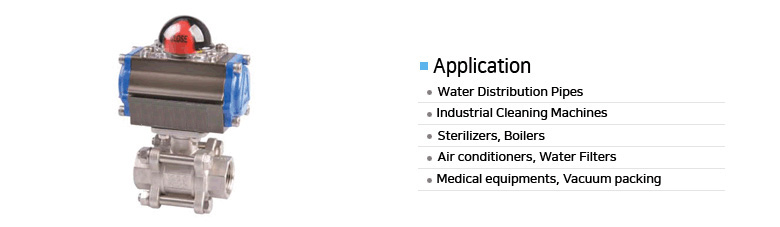

공압 자동 밸브 스크류 3PC볼 밸브

Specification

This is subject to change

Valve Size 8A(1/4") 10A(3/8") 15A(1/2") 20A(3/4") 25A(1") 32A(1-1/4") 40A(1-1/2") 50A(2")
Actuator Model ADR40 ADR50 ADR65 ADR80
Actuator Type Double Acting
Operating Media Compressed Dry Air
Operating Pressure 4~7kg/㎠
Rotating Angle 90˚ ±5˚
Fluid Temperature -20℃ ~ 80℃
Rating 1000 PSI
Body Material A351-CF8 / Body A351-CF8 / Ball PTFE / Seat
Accessory Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner

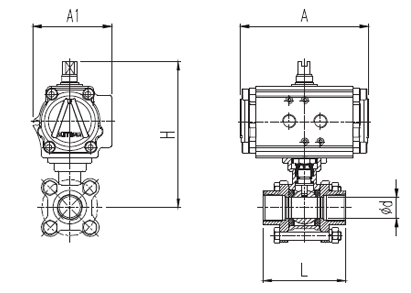

Dimension

End Connection : PT SCREW (mm)

Model Size A A1 H
(Approx)		 L Ød
mm Inch
ADR40-8S3 8A 1/4" 96 63 124 64 12.5
ADR40-10S3 10A 3/8" 96 63 124 64 12.5
ADR40-15S3 15A 1/2" 96 63 127 72 15
ADR40-20S3 20A 3/4" 96 63 133 80 20
ADR50-25S3 25A 1" 119 75 155 85 25
ADR65-32S3 32A 1-1/4" 131 89 177 105 32
ADR65-40S3 40A 1-1/2" 131 89 187 113 38
ADR80-50S3 50A 2" 189 101 221 132 50

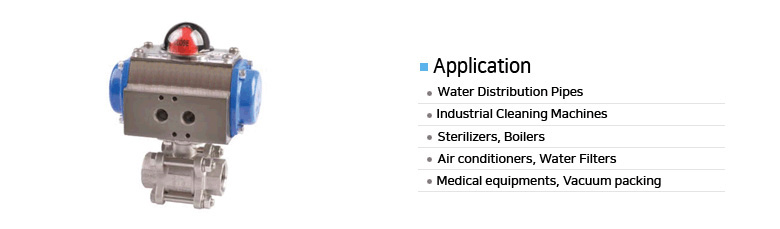

공압 자동 밸브 스크류 3PC볼 밸브

Specification

This is subject to change

Valve Size 8A(1/4") 10A(3/8") 15A(1/2") 20A(3/4") 25A(1") 32A(1-1/4") 40A(1-1/2") 50A(2")
Actuator Model ASR40 ASR50 ASR65 ASR80
Actuator Type Single Acting
Operating Media Compressed Dry Air
Operating Pressure 4.5~7kg/㎠
Rotating Angle 90˚ ±5˚
Fluid Temperature -20℃ ~ 80℃
Rating 1000 PSI
Body Material A351-CF8 / Body A351-CF8 / Ball PTFE / Seat
Accessory Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner

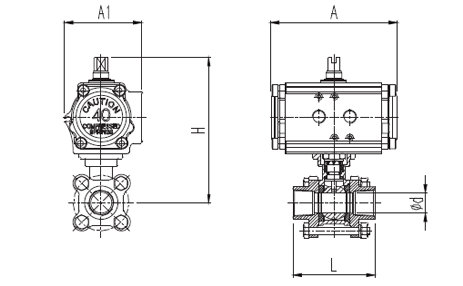

Dimension

End Connection : PT SCREW (mm)

Model Size A A1 H
(Approx)		 L Ød
mm Inch
ASR40-8S3 8A 1/4" 96 63 124 64 12.5
ASR50-10S3 10A 3/8" 133 75 139 64 12.5
ASR50-15S3 15A 1/2" 133 75 142 72 15
ASR50-20S3 20A 3/4" 133 75 148 80 20
ASR65-25S3 25A 1" 154 89 172 85 25
ASR65-32S3 32A 1-1/4" 154 89 177 105 32
ASR80-40S3 40A 1-1/2" 220 101 206 113 38
ASR80-50S3 50A 2" 220 101 221 132 50
