전동제품

전동 구동기 쿼터 턴 타입

Technical Information

Model Rated
torque		 Duty
cycle		 Oper.
time
50/60Hz		 Max
bore
size		 Motor
insula-
tion		 Rated current (A) 50/60Hz No of
turns		 Wei-
ght
1Phase 3Phase DC
Nm % 90˚ mm class 110V 220V 380V 440V 24V 90˚ Kg

Small ATM-Sereries

ATM0020 25 50 11 Ø9 x 9 E 0.45/0.44 0.26/0.25 0.03/0.31 0.28/0.40 3.0 N/A 1
ATM0040 40 50 14/12 Ø14 x 14 E 0.49/0.48 0.29/0.28 0.32/0.33 0.30/0.42 3.5 7.5 3
ATM0080 80 50 16/14 Ø17 x 17 E 0.92/0.88 0.48/0.46 0.18/0.17 0.17/0.16 2.9 7 7

Regular ATM-Sereries

ATM0100 100 40 21/18 Ø22 Ø20 F 0.98/1.10 0.52/0.58 0.43/0.33 0.59/0.42 2.8 10 7
ATM0160 160 30 26/22 Ø25 Ø23 F 1.60/1.70 0.85/0.90 0.30/0.30 0.30/0.32 1.8 12 15
ATM0240 240 30 26/22 Ø25 Ø23 F 1.62/1.72 0.87/0.90 0.32/0.32 0.32/0.35 2.4 12 15
ATM0350 350 30 31/26 Ø40 Ø34 F 1.75/1.68 0.93/0.89 0.30/0.30 0.32/0.31 3.8 14 20
ATM0500 500 30 31/26 Ø40 Ø34 F 3.60/3.90 2.50/1.60 0.52/0.56 0.55/0.58 5.0 14 20
ATM0800 800 30 39/32 Ø48 Ø40 F 3.90/4.20 2.05/2.20 0.82/0.88 0.82/0.88 - 17 25
ATM1100 1100 30 39/32 Ø48 Ø40 F 3.90/4.30 2.15/2.30 0.84/0.90 0.84/0.88 - 17 25
ATM2000 2000 30 59/50 Ø75 Ø64 F - 2.95/3.15 1.5/1.8 2.3/2.2 - 13 42
ATM3000 3000 30 59/50 Ø75 Ø64 F - 3.75/3.85 1.6/2.0 2.5/2.4 - 13 42

Large ATM-Sereries

ATM6000 6000 30 178/149 Ø120 Ø100 F - 2.95/3.15 1.5/1.8 2.3/2.2 - 39 152
ATM9000 9000 30 178/149 Ø120 Ø100 F - 3.75/3.85 1.6/2.0 2.5/2.4 - 39 152

Standard Specification

  Enclosure   Weatherproof IP67, NEMA 4X and 6, O-ring sealed (ATM0020 & ATM0040 : IP66)
  Main Power supply   24VDC, 110/220VAC/1Ph/50/60Hz, 380/440VAC/3Ph/50/60Hz ±10%, (ATM0020 & ATM0040 : 1Phase)
  Control power supply   110/220VAC/1Ph/50/60Hz ±10%
  Duty cycle (on-off)   S2 : 10min ~ 30min
  Duty cycle (modulating)   S4 : 30 ~ 50%, 300 ~ 1200 start/hour
  Motor   Squirrel cage induction motor

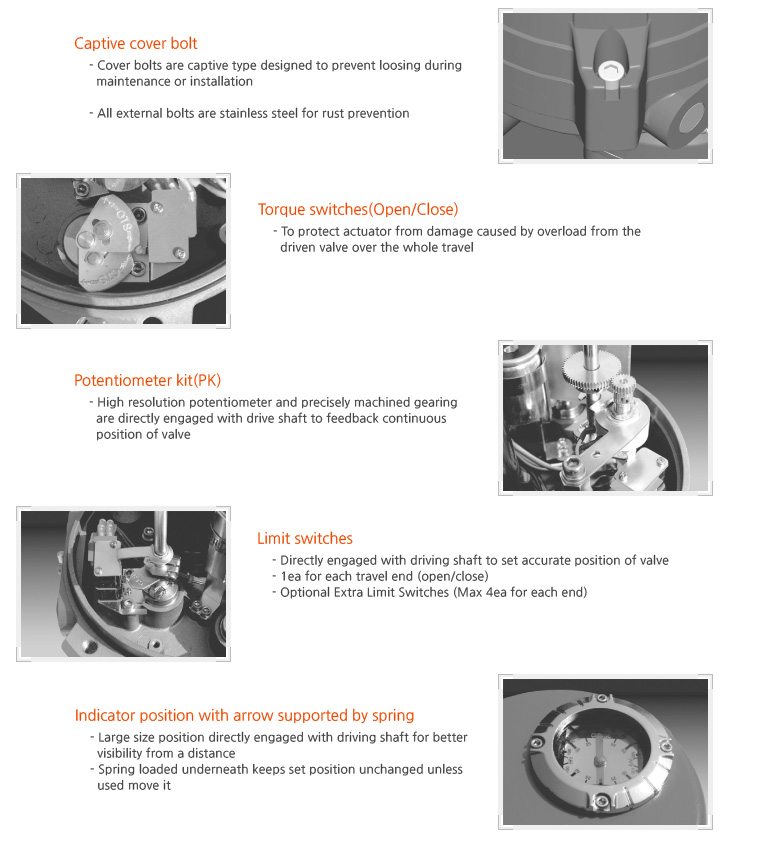

  Limit switches   2 each for open and close(SPDT 250VAC/10A rating)
  Torque switches   2 each for open and close(SPDT 250VAC/10A rating except for ATM0020/0040/0080/0100)
  Stall protection/set temp.   Built in thermal protection, open 150℃ ±5℃, close 97℃ ±15℃
  Travel angle   90˚ ± 5˚ (0℃ ~ 100℃)
  Position indicator   Continuous mechanical indicator with arrow
  Manual override   De-clutchable (except for ATM0020 : N/A, ATM0040 : by shaft, ATM0080 : by wrench)

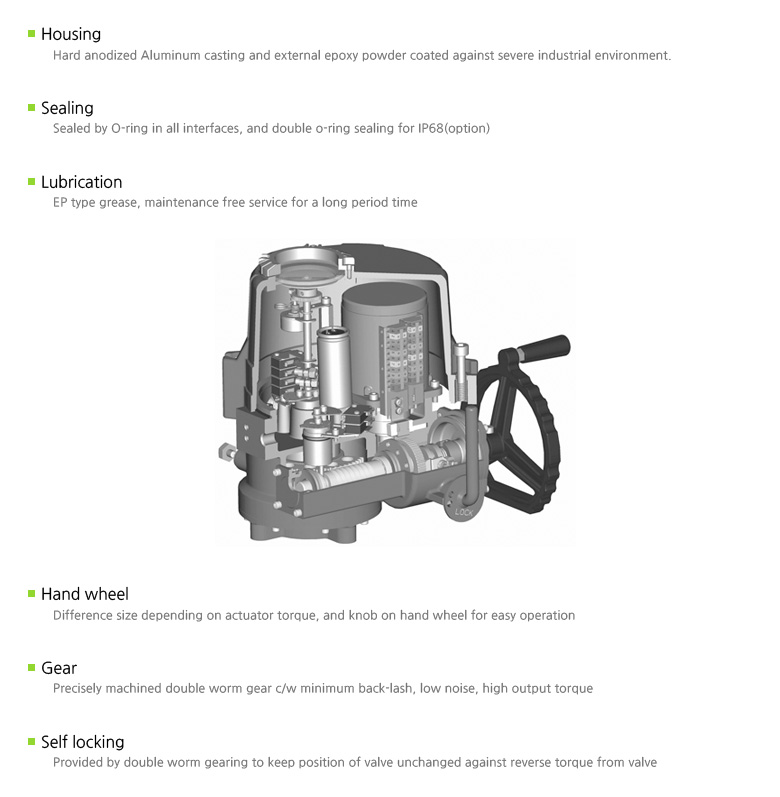

  Self locking   Provided by double worm gearing (no brake) (except for ATM0020/0040/0080)

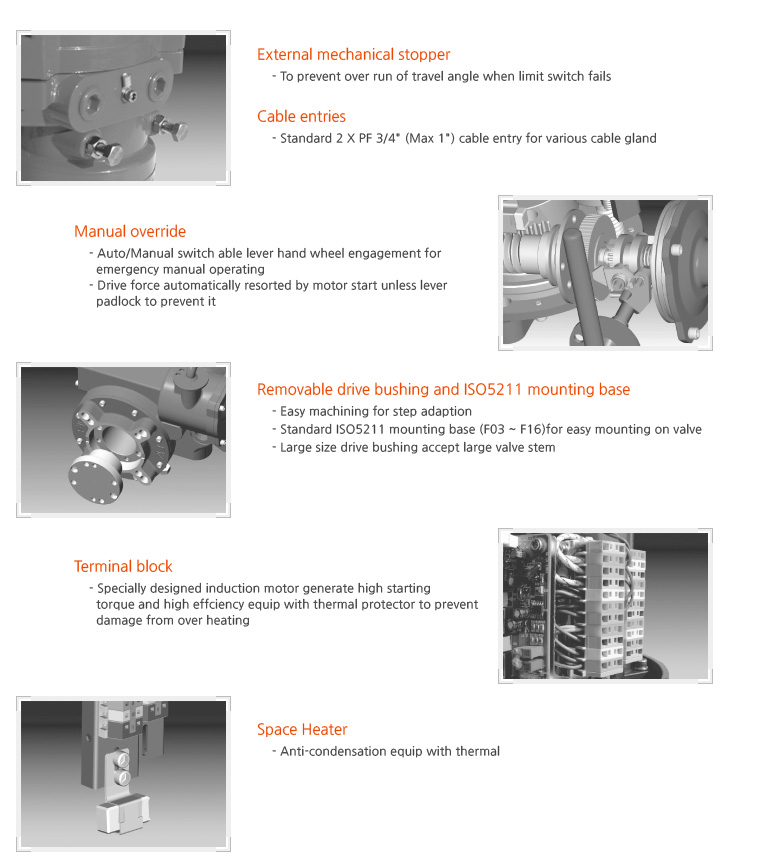

  Mechanical stopper   1 each for each travel end (open and close), external adjustable (except for ATM0020/0040)
  Space heater   5W(110/220VAC) for anti condensation
  Cable entries   2-PF3/4" TAP except for ATM0020 : 1-PG11, ATM0040 : 2-PG13.5, ATM0080 : 2-M20X1.5
  Lubrication   EP type grease
  Terminal block   screw and lever push type(spring loaded)
  Ambient temperature   Basic actuator : -20℃ ~ +70℃ except for ATM0020 : -10℃ ~ +65℃ c/w control option : -10℃ ~ +60℃
  Ambient humidity   90%RH Max (Non-condensing)
  Anti vibration   XYZ 10g. 02 ~ 34 Hz, 30 miinutes
  External coating   Dry powder(Polyester), Blue Color, Munsell No. B-0188

Options Available

Mechanical

Symbol Description Remark
EX Explosion proof(Exd IIB T4)/Approved by KTL Except for ATM0020/0040/0080
WT Waterright(IP68), Temporary submersible/10M Head 1000hours Except for ATM0020/0040/0080
ALS Auxiliary limit switches(Max 2 for each travel end) Except for ATM0020/0040
ATS Auxiliary torque switches(Max 2 for each travel end) Except for ATM0020/0040/0080/0100
EXT

Extended travel angle(up to 120˚, 135˚, 180˚, 270˚)

 Except for ATM with Large ATM-Series
SV Variation in torque and operating speed Please consult before ordering

Remote monitoring and control

PK   Potentiometer Kit(output signal:0~1kohm)
  High resolution potentiometer and precisely machined gearing
  are directly engaged with drive shaft to feedback
  continuous position of valve
CT   Current Transmitter(output signal:4~20mA)
  Zero/Span Adjustment
  Convertible DIP switch(4 wire to 2 wire)
RPC/Signal
Configulation		   Remote Position Controller(by input and output signal)
  Input:4~20mA, 0~10VDC, 2~10VDC, 1~5VDC, 0~5VDC
  Output:4~20mA, 0~10VDC, 2~10VDC, 1~5VDC, 0~5VDC
  Auto calibration
  Reverse operating direction

Local control

LP4 / LM4

  LP4 for 1 & 3Phase(ATM0160~9000)

  Control power : Free Voltage(85~265VAC)50/60Hz, Option : 24VDC
  Magnetci slector switches, SMPS(Switching Module Power Supply)
  : Open/Close & Local/Stop/Remote

  Local lamp indication
  : Power-White(on), Remote : Blue(on)
  : In case of Close Torque Switch Trip-
  Yellow(on)+Green(flickering:only at Local Position)
  : In case of Open Torque Switch Trip-
  Yellow(on)+Red(flickering:only at Local Position)
  : Full Close-Green(on), Closing-Green(flickering:only at Local Position)
  : Full Open-Red(on), Opening-Red(flickering:only at Local Position)

  ※ Options Available:PK, CT, RPC(Modulating), IP68, Explosion proof

  LM4 for 3 Phase(ATM0160~9000)

  Including the same function as LP4
  Revesing electric contactors, Transformer

Local control

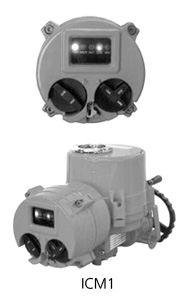

  ICM1 for 1 & 3 Phase(Integral Control Module) (ATM0160~9000)

  Main Power : 3Ph 220V/380/440 VAC
  1Ph 110V/220 VAC
  Control Power : 24 VDC, 5 VDC
  Magnetic selector switches
  : Open/Close & Local/Stop/Remote
  Reversing electric contactors, Transformer, Phase Detector

  Local lamp indication
  : Power-White(on), Remote : Blue(on)
  : In case of Close Torque Switch Trip-Yellow(on)+Green(flickering)
  : In case of Open Torque Switch Trip-Yellow(on)+Red(flickering)
  : Full Close-Green(on), Closing-Green(flickering:only at Local Position)
  : Full Open-Red(on), Opening-Red(flickering:only at Local Position)
  : Single & Revese Phasing : Yellow+Green+Red)all flickering

  ※ Options Available : Explosion proof, IP68

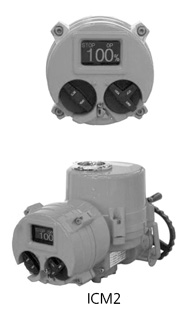

  ICM2 for 1 & 3 Phase(Integral with LCD Display) (ATM0160~9000)

  Including the same function as ICM1
  Reversing electric contactors, Transformer, Phase Detector
  Auto-Phase Discriminator, LCD Display
  ※ Options Available : CT, RPC(Modulating), Explosion proof
  ※ Options Available : IP68, Bus Communication



  ICM3 for 1 & 3 Phase(Integral with LCD Display/IP68 Enclosure) (ATM0160~9000)

  Including the same function as ICM2
  Reversing electric contactors, Transformer, Phase Detector
  Auto-Phase Discriminator, LCD Display, IP68, Explosion proof
  RPC(Modulating), Bus Communication
  34pins separate compartment for terminal block

Fail Safety > BP for 1 Phase(ATM0160~9000)


  Rechargeable Battery back up-Fail Safe function
  When main power is alive, actuator works as normally
  Once power fails, actuator will move to pre-set fail safe position
  Input power-Free Voltage(85~265VAC) 50/60Hz
  Output contacts : Open/Close/Alarm relay
  LED signal indication : 4 LEDs(Full Open/Close, Over Troque and Power)
  Rechargeable battery : 2.0 AH 27.5 VDC(Ni-Cd)

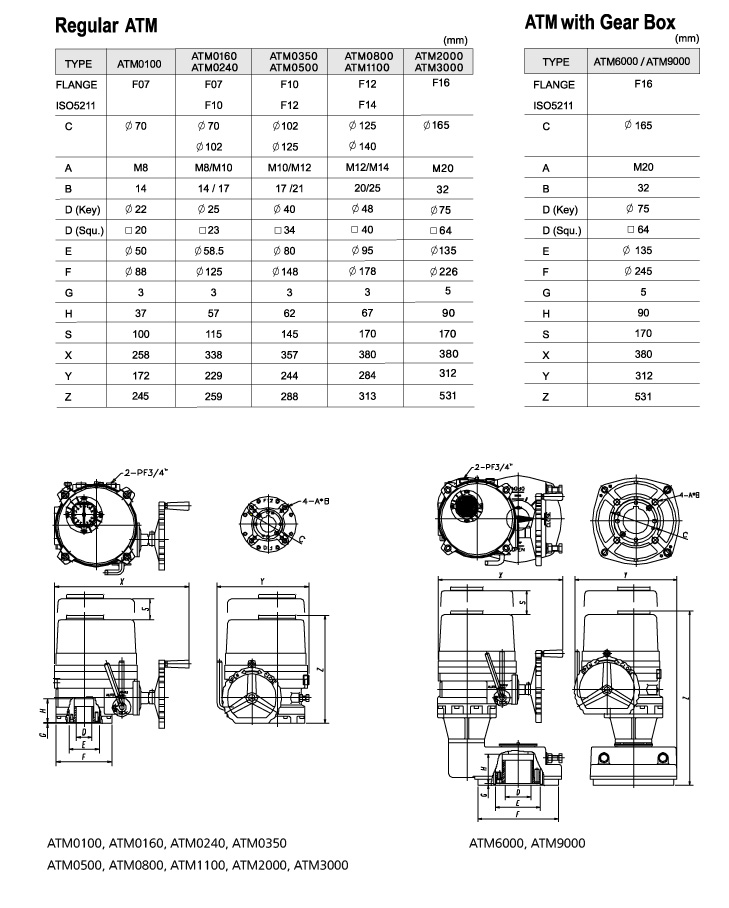

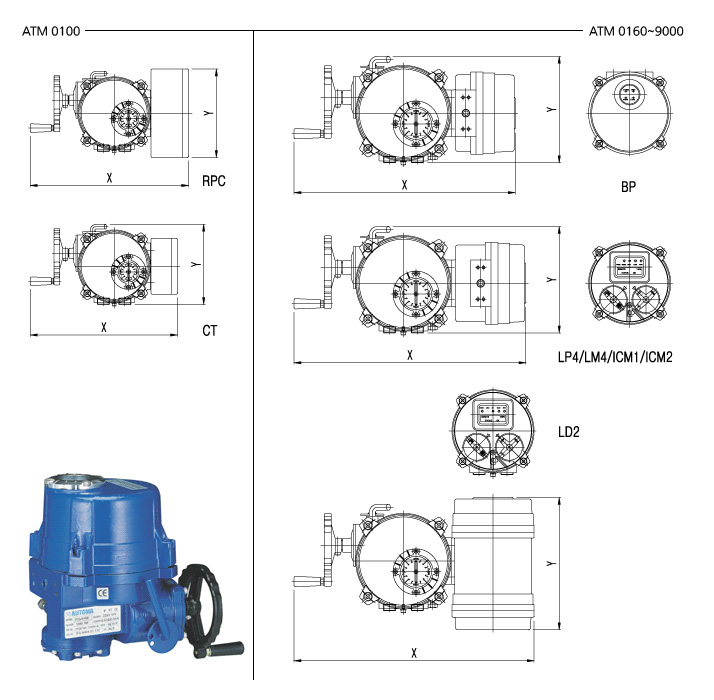

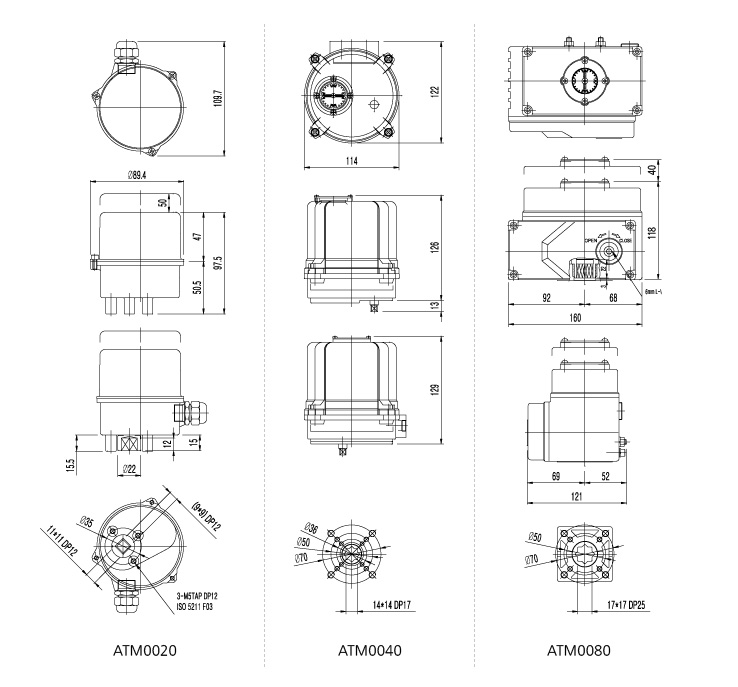

Dimension

Unit : mm

  RPC CT BP LP4/LM4/ICM1/ICM2 LD2
X Y Z X Y Z X Y Z X Y Z X Y Z
ATM0100 340 190 245 316 172 245 396 172 245   X     X
ATM0160/0240   ○     ○   475 229 259 499 229 259 517 284 259
ATM0350/0500   ○     ○   494 244 288 518 244 288 536 284 288
ATM0800/1100   ○     ○     X   541 284 313 559 284 313
ATM2000/3000   ○     ○     X   600 375 385 620 375 385
ATM6000/9000   ○     ○     X   677 417 668 697 417 668

*O : Installed inside of actuator *X : Not available *Z : Height of basic actuator

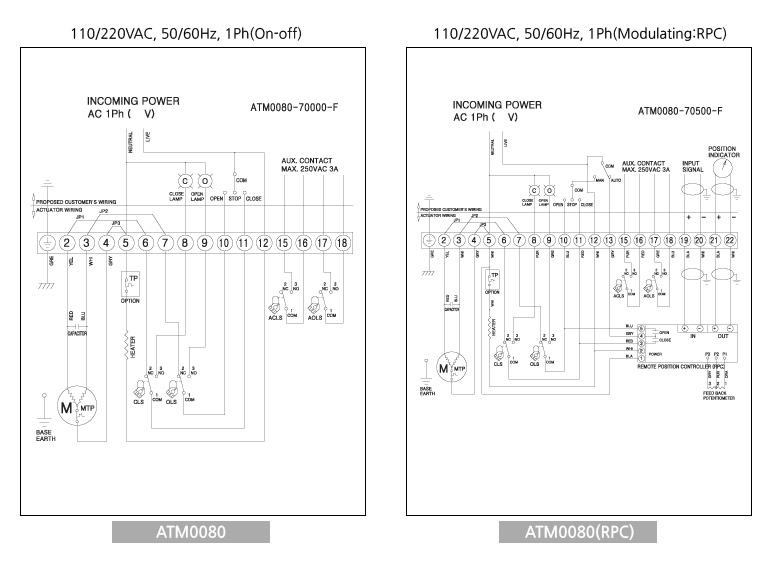

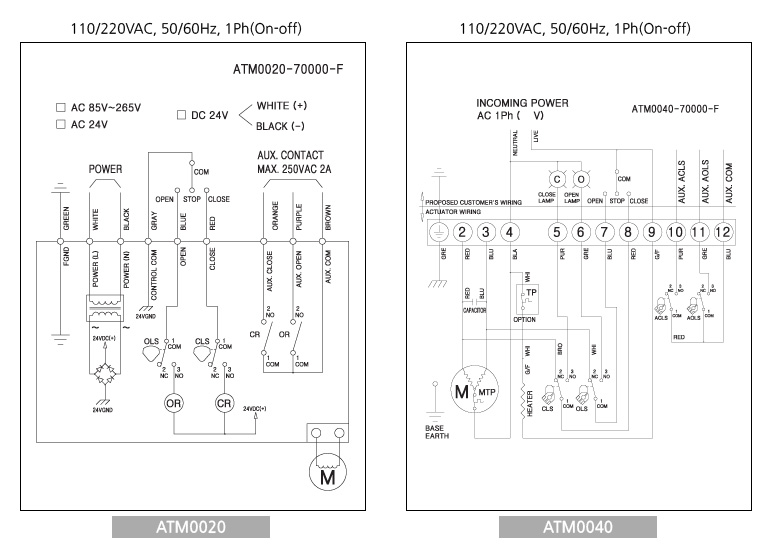

Typical Wiring(ATM 0040 ~0080)

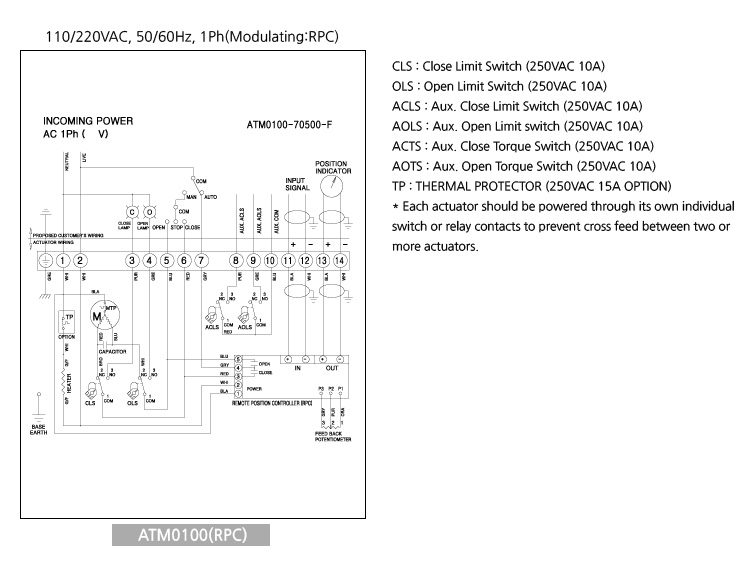

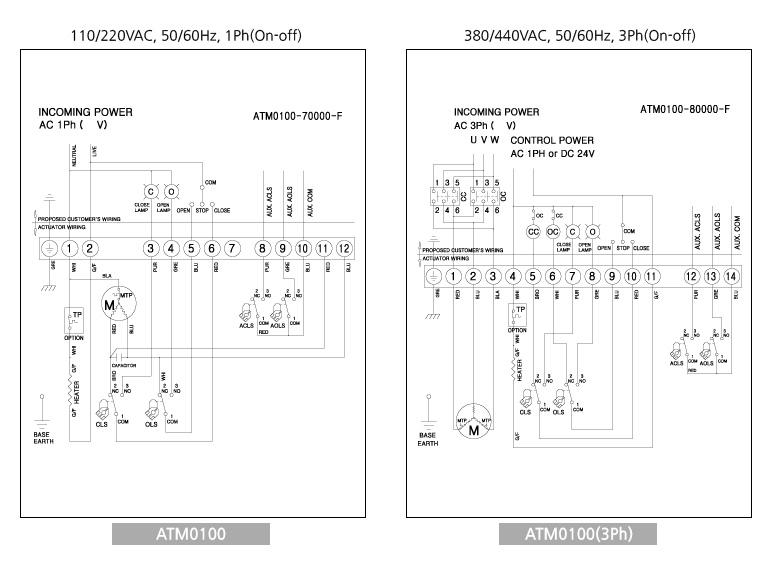

Typical Wiring(ATM 0100)

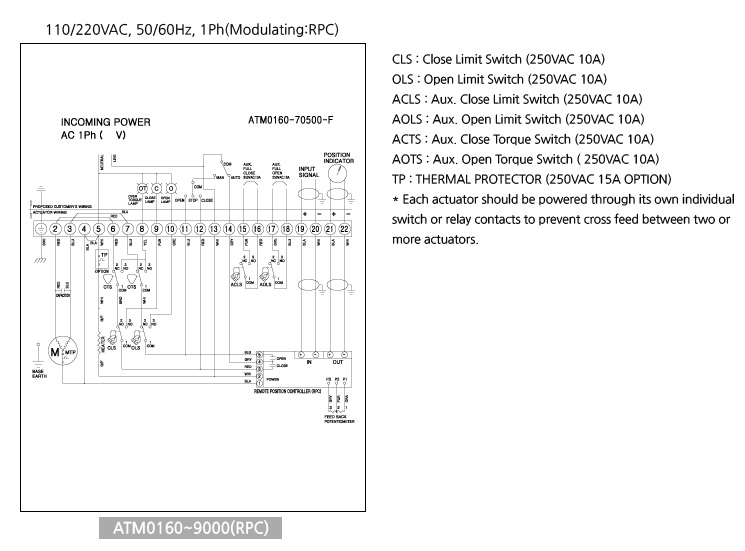

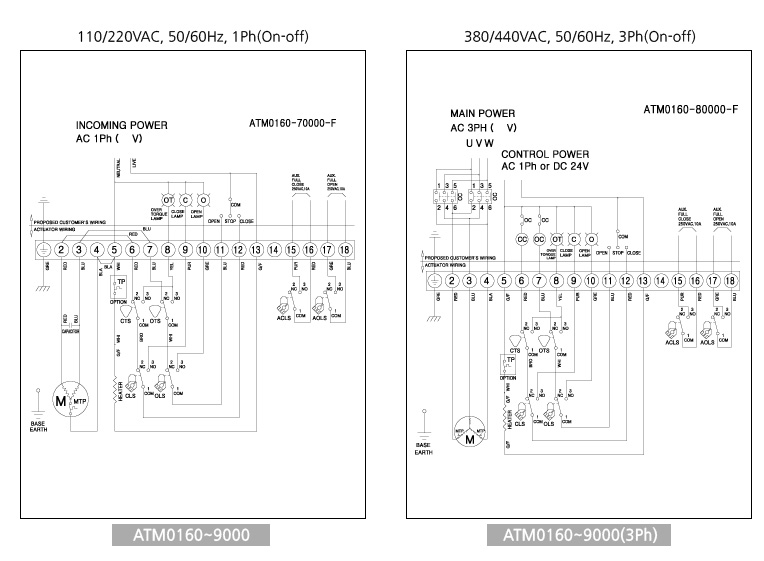

Typical Wiring(ATM 0160 ~ 3000)
