글로브 밸브

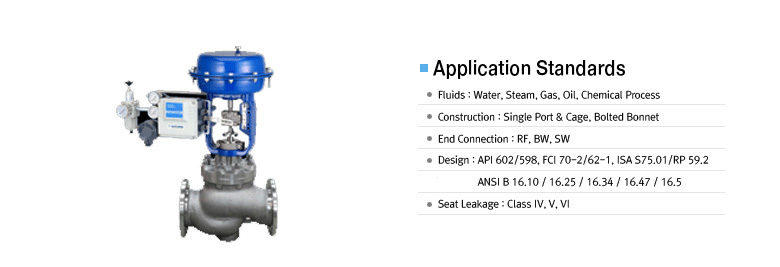

글로브 밸브 컨트롤 타입 ANSI CL 150 LBS (JIS 10K)

Specification

Valve Size 15A(1/2") ~ 400A(16")
Actuator Model AP220 ~ AP560
Actuator Type Pneumatic Multi Spring Diaphragm / Cylinder - Linear Action (with Dry Air)
Operating Pressure 3 ~ 5kg/㎠
Fluid Temperature -100℃ ~ 560℃
Rating ANSI 150#(JIS 10K)
Body Body(A216 WCB, A351 CF8, 8M) / Trim(A182 F304, 316) / Packing(Graphite, viton)
Accessory Solenoid Valve, Air filter Regulator, E/P Positioner

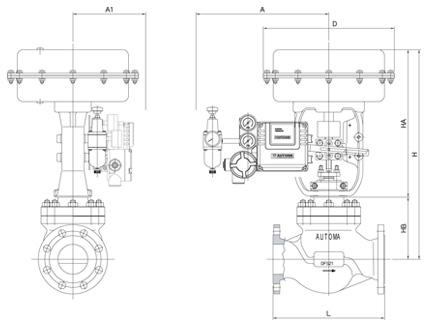

Dimension

(mm)

SIZE STROKE L H HA HB D A A1 Weight
mm Inch
15A 1/2" 20 184 390 280 110 220 250 140 13
20A 3/4" 20 184 13
25A 1" 20 184 16
32A 1-1/4" 25 222 435 320 115 270 260 22
40A 1-1/2" 25 222 22
50A 2" 25 254 445 320 125 28
65A 2-1/2" 30 276 535 395 140 350 270 160 48
80A 3" 40 298 565 395 170 61
100A 4" 40 352 585 395 190 69
125A 5" 50 403 780 500 280 470 300 250 155
150A 6" 50 451 785 500 285 175
200A 8" 75 543 855 500 355 280
250A 10" 75 673 1118 693 420 560 　 　 350
300A 12" 100 737 1119 693 497 -
350A 14" 100 889 1273 893 580 CYLINDER
400		 　 　 -
400A 16" 130 1016 1698 1045 653 -

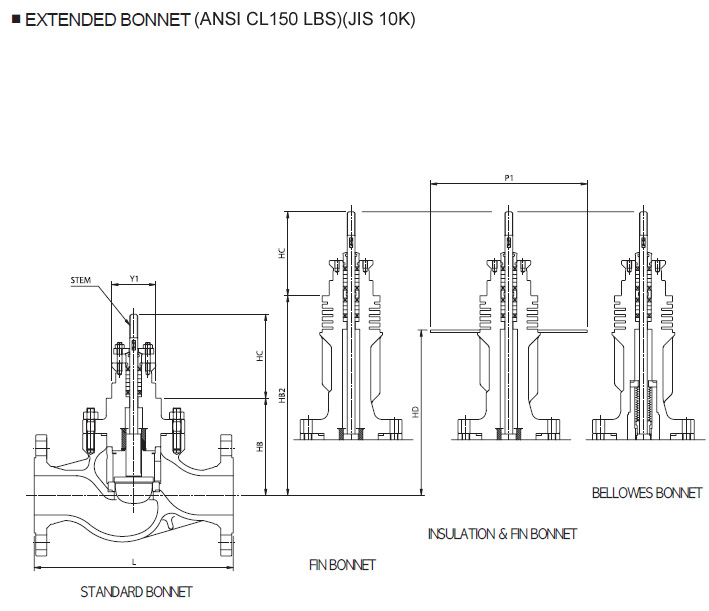

Dimension

(mm)

Size Stroke L HB HB2 Y
0-0.1		 HC HD P1 Stem
mm Inch
15A 1/2" 20 184 100 216 50 105 175 150 M10X1.5P
20A 3/4" 20 184 100 216 50 105 175 150 M10X1.5P
25A 1" 20 184 106 223 50 105 180 150 M10X1.5P
32A 1-1/4" 25 222 111 237 50 105 195 170 M10X1.5P
40A 1-1/2" 25 222 111 237 50 105 195 170 M10X1.5P
50A 2" 25 254 111 255 50 105 215 200 M10X1.5P
65A 2-1/2" 30 276 155 270 65.5 125 227 220 M14X1.5P
80A 3" 40 298 165 351 65.5 125 310 220 M14X1.5P
100A 4" 40 352 185 403 65.5 125 365 240 M14X1.5P
150A 6" 50 451 290 480 82 145 450 300 M16X1.5P
200A 8" 75 543 350 580 82 145 510 400 M18X1.5P
250A 10" 75 673 430 580 82 145 660 480 M18X1.5P
300A 12" 100 737 693 580 100 150 　 480 M24X1.5P
350A 14" 100 889 893 830 150 200 　 480 M24X1.5P
400A 16" 130 1016 1045 830 150 200 　 480 M24X1.5P

글로브 밸브 컨트롤 타입 ANSI CL 300 LBS (JIS 20K)

Specification

Valve Size 15A(1/2") ~ 400A(16")
Actuator Model AP220 ~ AP560
Actuator Type Pneumatic Multi Spring Diaphragm / Cylinder - Linear Action (with Dry Air)
Operating Pressure 3 ~ 5kg/㎠
Fluid Temperature -100℃ ~ 560℃
Rating ANSI 300#(JIS 20K)
Body Body(A216 WCB, A351 CF8, 8M) / Trim(A182 F304, 316) / Packing(Graphite, viton)
Accessory Solenoid Valve, Air filter Regulator, E/P Positioner

Dimension

(mm)

SIZE STROKE L H HA HB D A A1 Weight
mm Inch
15A 1/2" 20 194 390 280 110 220 250 140 13
20A 3/4" 20 194 13
25A 1" 20 197 16
32A 1-1/4" 25 235 435 320 115 270 260 24
40A 1-1/2" 25 235 25
80A 3" 40 318 565 395 170 350 270 160 66
100A 4" 40 368 585 395 190 72
125A 5" 50 425 780 500 280 470 300 250 165
150A 6" 50 473 785 500 285 182
200A 8" 75 568 855 500 355 305
250A 10" 75 708 1118 693 420 560 　 　 365
300A 12" 100 775 1119 693 497 -
350A 14" 100 927 1273 893 580 CYLINDER
400		 　 　 -
400A 16" 130 1057 1698 1045 653 -

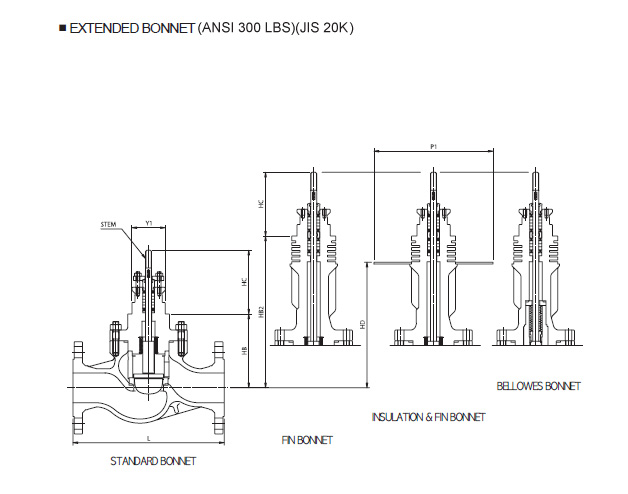

Dimension

(mm)

Size Stroke L HB HB2 Y
0-0.1		 HC HD P1 Stem
mm Inch
15A 1/2" 20 194 100 216 50 105 175 150 M10X1.5P
20A 3/4" 20 194 100 216 50 105 175 150 M10X1.5P
25A 1" 20 197 106 223 50 105 180 150 M10X1.5P
32A 1-1/4" 25 235 111 237 50 105 195 170 M10X1.5P
40A 1-1/2" 25 235 111 237 50 105 195 170 M10X1.5P
50A 2" 25 267 111 255 50 105 215 200 M10X1.5P
65A 2-1/2" 30 292 155 270 65.5 125 227 220 M14X1.5P
80A 3" 40 317 165 351 65.5 125 310 220 M14X1.5P
100A 4" 40 368 185 403 65.5 125 365 240 M14X1.5P
150A 6" 50 473 290 480 82 145 450 300 M16X1.5P
200A 8" 75 568 350 580 82 145 510 400 M18X1.5P
250A 10" 75 708 430 580 82 145 660 480 M18X1.5P
300A 12" 100 775 693 580 100 150 　 480 M24X1.5P
350A 14" 100 927 893 830 150 200 　 480 M24X1.5P
400A 16" 130 1057 1045 830 150 200 　 480 M24X1.5P

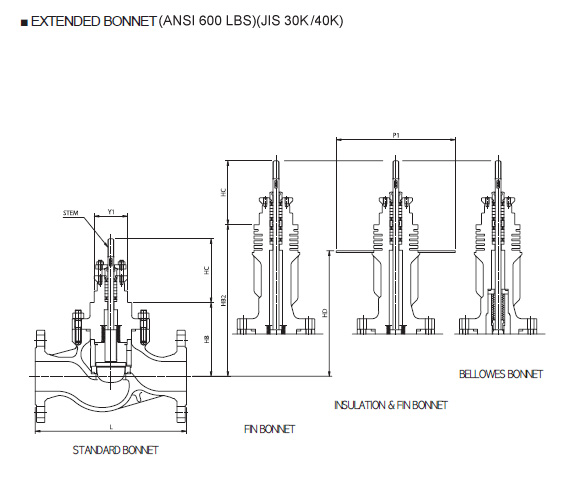

글로브 밸브 컨트롤 타입 ANSI CL 600 LBS (JIS 30K/40K)

Specification

Valve Size 15A(1/2") ~ 350A(14")
Actuator Model AP220 ~ AP470
Actuator Type Pneumatic Multi Spring Diaphragm / Cylinder - Linear Action (with Dry Air)
Operating Pressure 3 ~ 5kg/㎠
Fluid Temperature -100℃ ~ 560℃
Rating ANSI 600#(JIS 30K / 40K)
Body Body(A216 WCB, A351 CF8, 8M) / Trim(A182 F304, 316) / Packing(Graphite, viton)
Accessory Solenoid Valve, Air filter Regulator, E/P Positioner

Dimension

(mm)

Size Stroke L H HA HB D A A1 Weight
mm Inch
15A 1/2" 20 206 377 276 100 220 250 140 13
20A 3/4" 20 206 377 276 100 220 250 140 13
25A 1" 20 210 382 276 106 220 250 140 16
32A 1-1/4" 25 251 431 320 111 270 260 140 25
40A 1-1/2" 25 251 431 320 111 270 260 140 25
50A 2" 25 286 444 320 111 270 260 140 31
65A 2-1/2" 30 311 529 394 155 270 260 190 51
80A 3" 40 337 561 394 165 350 270 190 62
100A 4" 40 394 581 394 185 350 270 190 75
150A 6" 50 508 815 525 290 470 300 250 180
200A 8" 75 610 935 585 350 470 300 250 290
250A 10" 75 714 935 585 430 470 300 250 360

Dimension

(mm)

Size Stroke L HB HB2 Y
0-0.1		 HC HD P1 Stem
mm Inch
15A 1/2" 20 206 100 216 50 105 175 150 M10X1.5P
20A 3/4" 20 206 100 216 50 105 175 150 M10X1.5P
25A 1" 20 216 106 223 50 105 180 150 M10X1.5P
32A 1-1/4" 25 251 111 237 50 105 195 170 M10X1.5P
40A 1-1/2" 25 251 111 237

50

 105 195 170 M10X1.5P
50A 2" 25 286 111 255 50 105 215 200 M10X1.5P
65A 2-1/2" 30 311 155 270 65.5 125 227 220 M14X1.5P
80A 3" 40 337 165 351 65.5 125 310 220 M14X1.5P
100A 4" 40 394 185 403 65.5 125 365 240 M14X1.5P
150A 6" 50 508 290 480 82 140 450 300 M16X1.5P
200A 8" 75 610 350 580 82 138 510 400 M18X1.5P
250A 10" 75 714 430 620 82 145 660 480 M18X1.5P
