글로브 밸브

CV
Pneumatic Actuator
Flow Characteristics
Combination of Trim Materials
Model selection guide

글로브 밸브 컨트롤 타입 CV

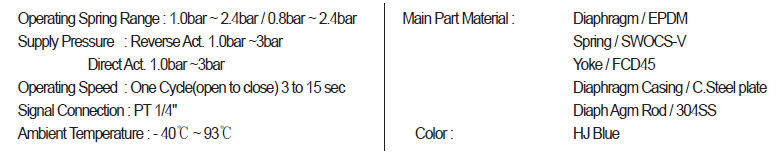

글로브 밸브 Pneumatic Actuator

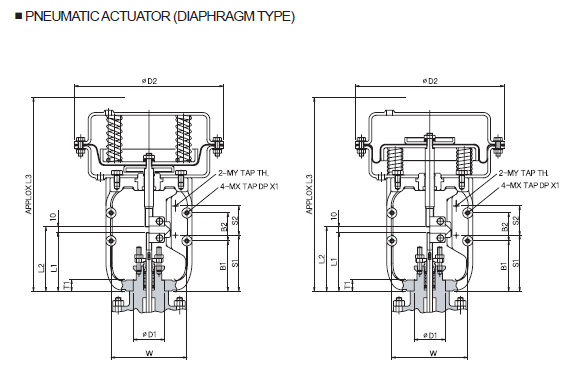

Model	Engineering Data(mm)
Model	ØD1 0.1~0.3	ØD2	T1	L1	L2	L3	W	B1	B2	S1	S2
220	56	220	20	105	115	290	120	85	50	100	36
270	56	270	20	105	115	345	136	90	50	90.5	62
350	65.5	350	20	125	135	420	160	110	50	107	85
470	80	470	24	145	155	525	235	130	50	127	100

lEngineering Data(mm)
Model	Effective Diaphragm Area Cm2	Torque		Stroke mm	Actuators Rod Diameter	MY X TH	MX X DPXX
Model	Effective Diaphragm Area Cm2	Direct kgf	Reverse kgf	Stroke mm	Actuators Rod Diameter	MY X TH	MX X DPXX
220	155	190	190	20	Ø16XM14X1.5P	M4X0.7P	M8XDP20
270	198	320	320	25	Ø16XM14X1.5P	M4X0.7P	M8XDP20
350	268	550	550	40(30)	Ø25XM20X1.5P	M4X0.7P	M8XDP20
470	370	1100	1100	50.75	Ø30XM24X1.5P	M4X0.7P	M8XDP20

글로브 밸브 컨트롤 타입 Flow Characteristics

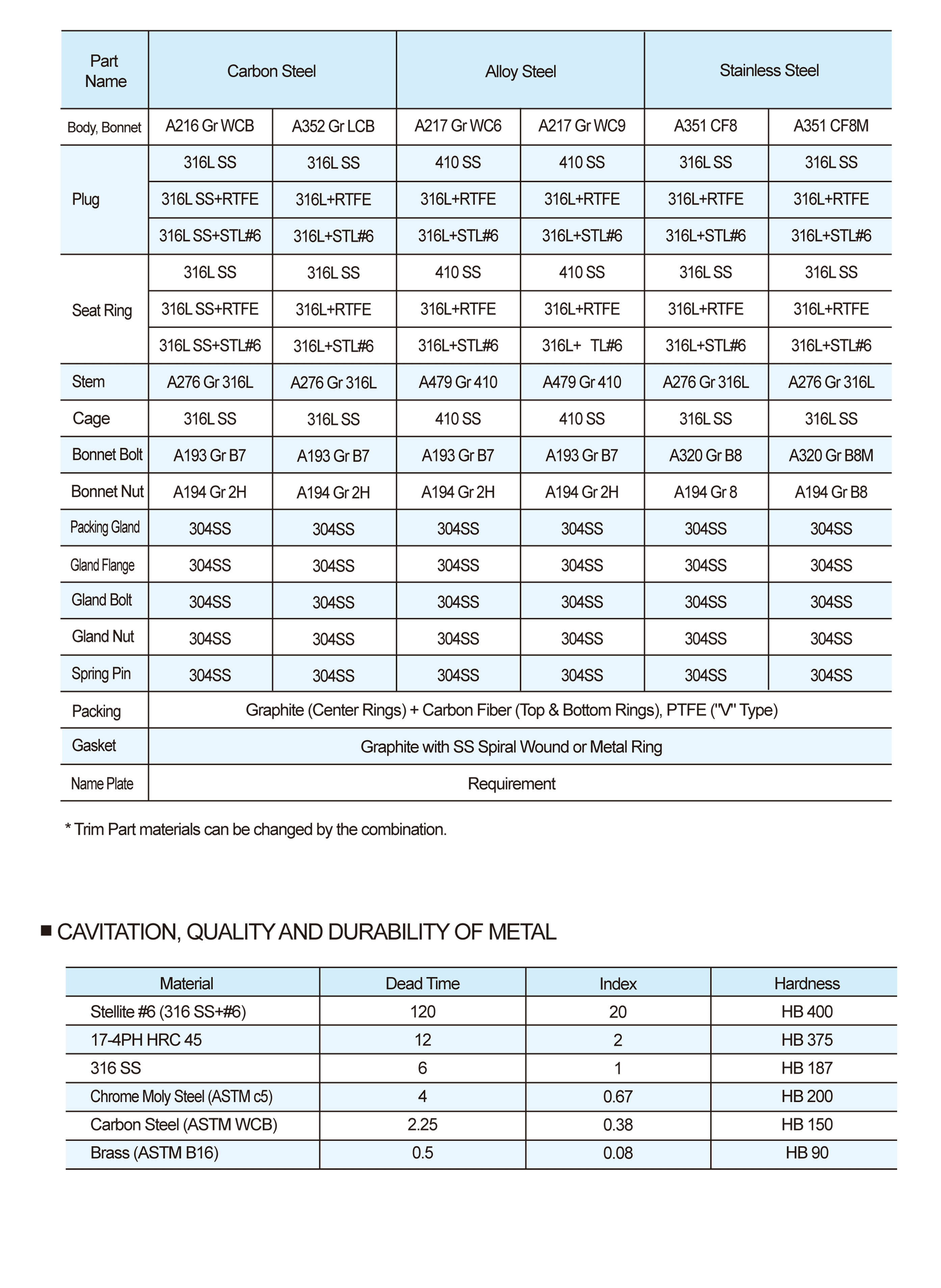

글로브 밸브 컨트롤 타입 Combination of Trim Materials

글로브 밸브 컨트롤 타입 Model selection guide
